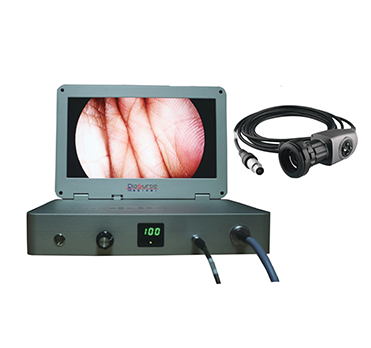

FULL HD INTEGRATED ENDOSCOPY CAMERA SYSTEM – DS-AS 180HD

Portable Endoscopy Camera brings a new solution for endoscopy surgery, especially in clinic inspection. Sony CMOS sensor chip is equipped as the image capture. The sensor and lens system are designed to access a transparent imaging with the assistance of built-in LED light source. Stable CPU based micro-controller is employed as the control core for the image processing and transmission module, display module, recording module and others. The image is displayed on a 15.6 inch screen with 1920x1080P HD resolution.



HIGH COMPACT PACKAGE FEATURES:

The console front panel features some switches where different menus can be accessed including the controls for adjusting the light level, zoom, freeze and white balance as well as allows the selection of surgical specialty settings that optimize camera performance for various specific surgical procedures. Sterilize Camera head and cable with ethylene oxide sterilization.



INTEGRATED ENDOSCOPY CAMERA 4 IN 1:

  • Endoscopy Camera: Full HD (1920x1080P)
  • LED Light Source: Long life LED for Endoscopy
  • Monitor: Full HD 15.6 inch resolution 1920x1080P
  • USB/Video Recorder: Real time Endoscopy Recording


PART 1: HD CAMERA

  • Image Sensor: 1/3 inch Sony CMOS Sensor Chip
  • Resolution: 1920x1080P Full HD 16:9 (1080 TV Line)
  • Effective Pixels: 2.07 Megapixels or 2,073,600 Pixels
  • Scanning System: Progressive Scan
  • Frame Rate: 60 FPS - While using external monitor for display image the frame rate would be Adjusted Automatically.
  • Optical Adopter Mounting: Standard C-Mount or O-Mount
  • Camera Head Button: 4 freely programmable head button


PART 2: MONITOR

  • Size: 15.6 inch screen
  • Resolution: 1920x1080P Full HD 16:9
  • Brightness: 300±1cd/m²
  • Angle of view: 170°
  • Color: 16.7 Million colors
  • Imaging processor: Medical Grade (Endoscopy Special)


PART 3: LED LIGHT SOURCE

  • 40 Watts power of lamp.
  • Illumination: 2,000,000 Lux
  • Color Temperature: 6000K±1000K
  • Lamp Life: 50,000 Hours


PART 4: RECORDING SYSTEM

  • USB device (Support any capacity)
  • Recording Format: VIDEO - MKV
  • Resolution: 1920x1080
